FEATURES
- Dense WDM in compliance with ITU-T G.694.1

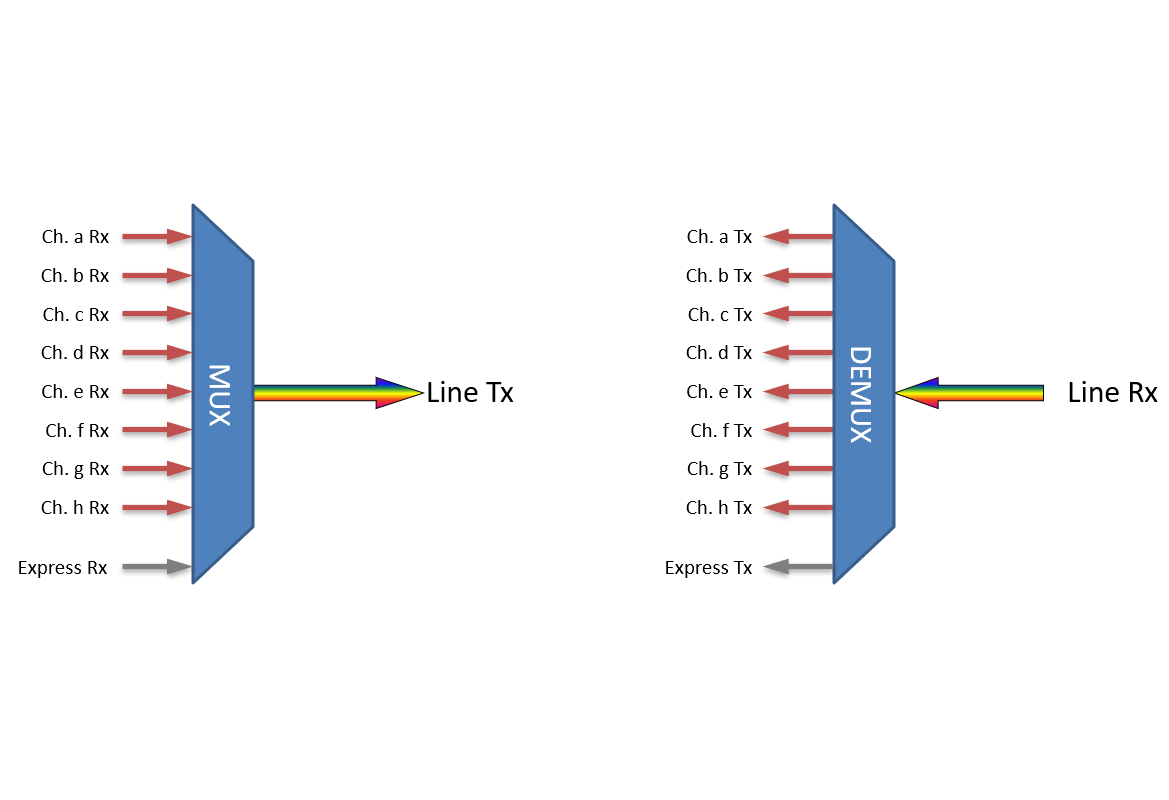

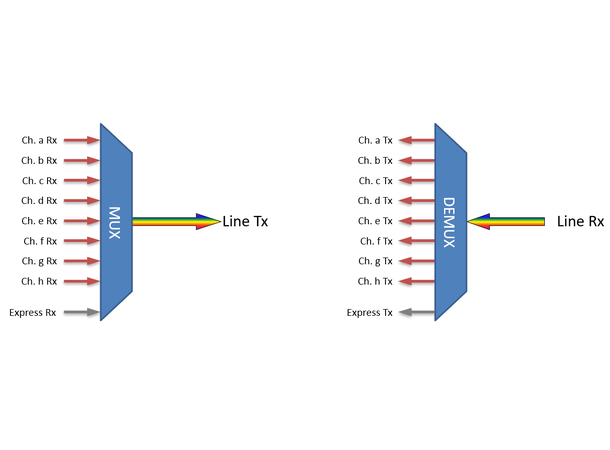

- Optical add/drop multiplexer (OADM) for 8 consecutive 100GHz DWDM channels
- "Drop and continue" (one direction)
- Can also be used as a multiplexer with upgrade port
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)

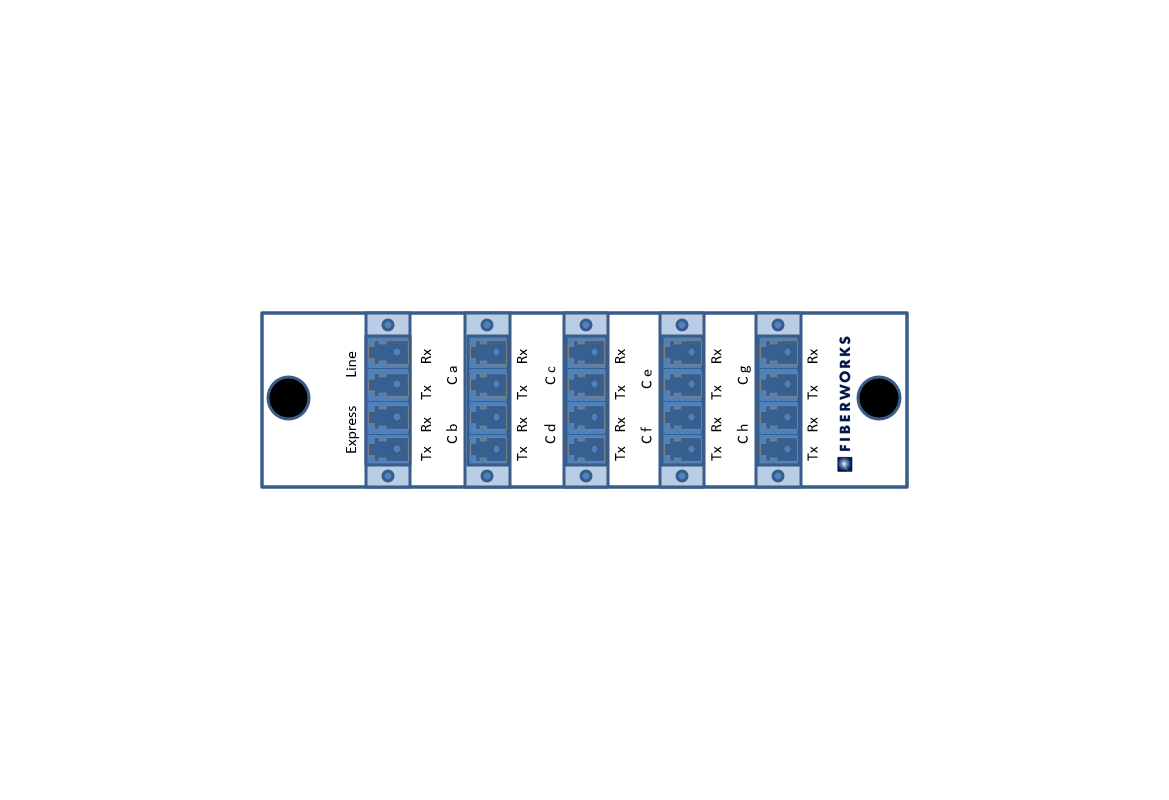

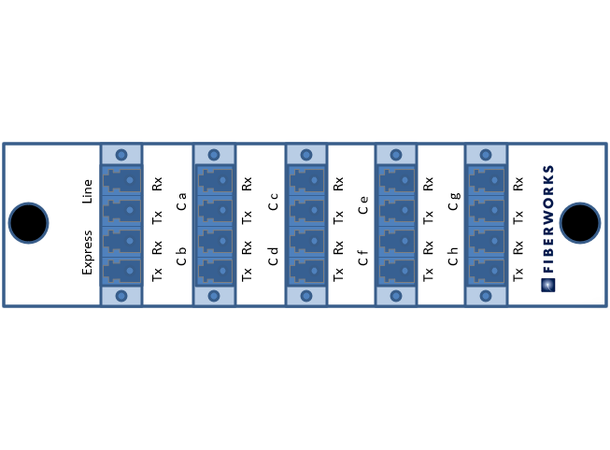

- LGX2 form factor, 3 modules fit in 1U in 19" rack or 12 in a 3U rack
- LC connectors
