Fiberworks 4 ch. BiDi DWDM mux/demux O-band 400GHz, Single Fiber, LC/UPC, "B"

Fiberworks 4 ch. BiDi DWDM mux/demux

O-band 400GHz, Single Fiber, LC/UPC, "B"

Varenr: F-O4MUX-BIDI4-B

Beskrivelse

Dette er en DWDM mux/demux for 4 bidireksjonelle kanaler i O-båndet. Den er spesielt tilpasset bruk sammen med 100G QSFP28 DWDM-transceivere.

FEATURES
- Dense WDM in the O-band with 400 GHz spacing

- Single fiber operation

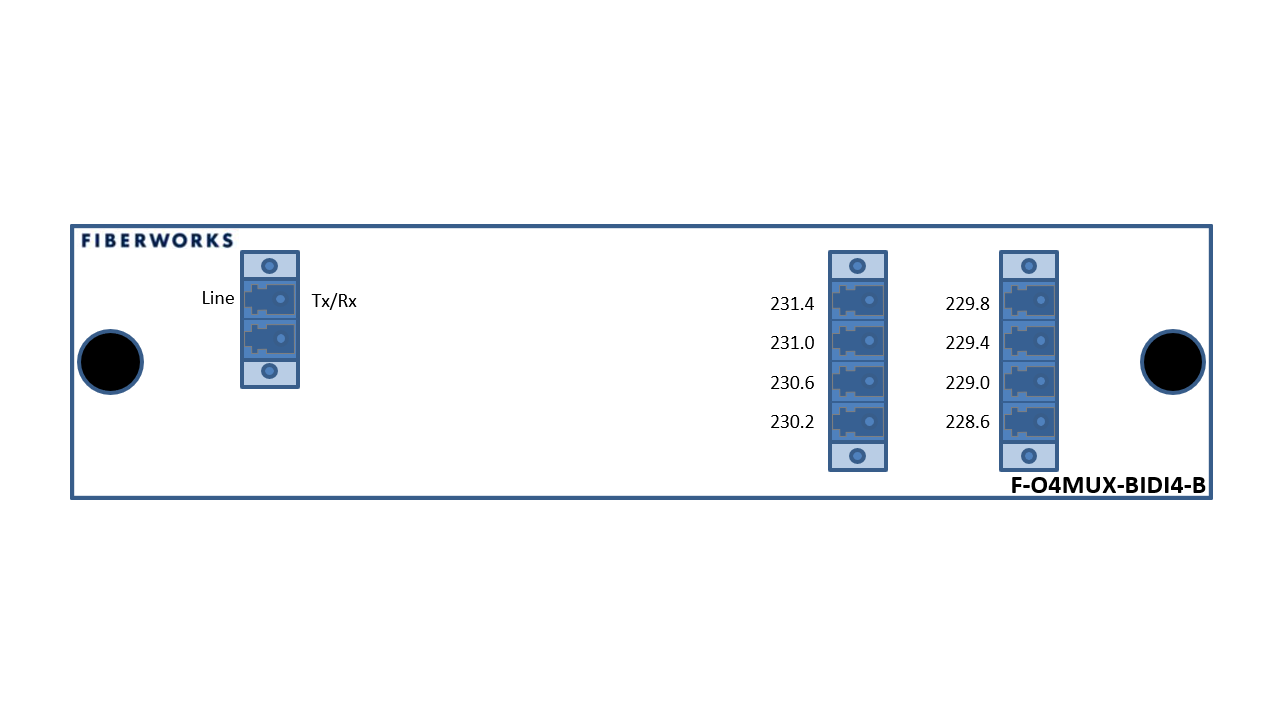

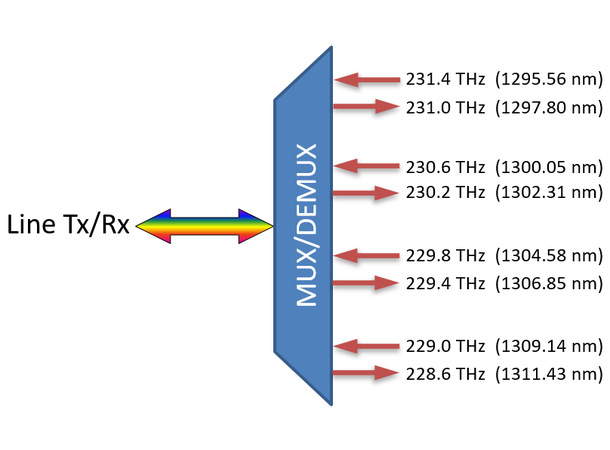

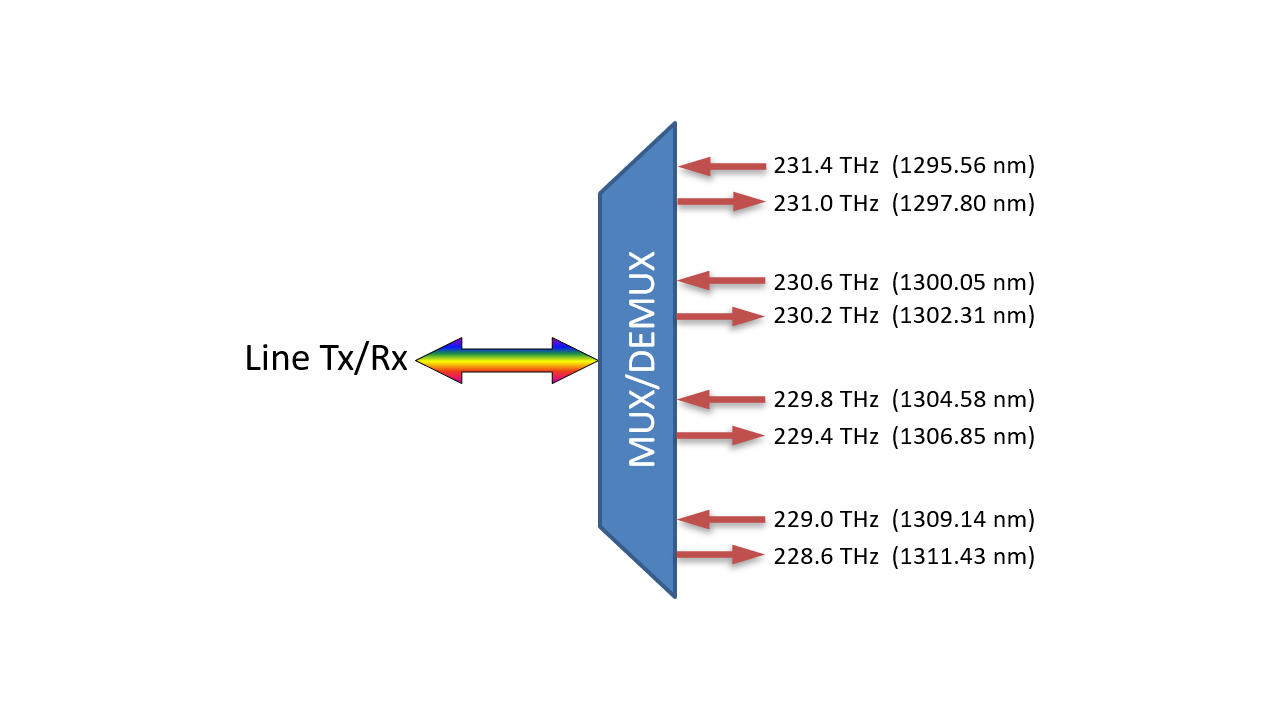

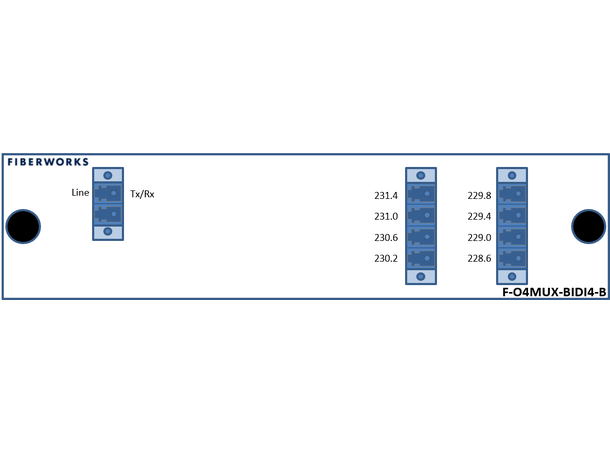

- 8 DWDM wavelengths 228.6 - 231.4 THz (1295.56 - 1311.43 nm) provide for 4 bidirectional channels

- All channels fit within any 1310 upgrade/extension port
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 25G, 100G etc.)

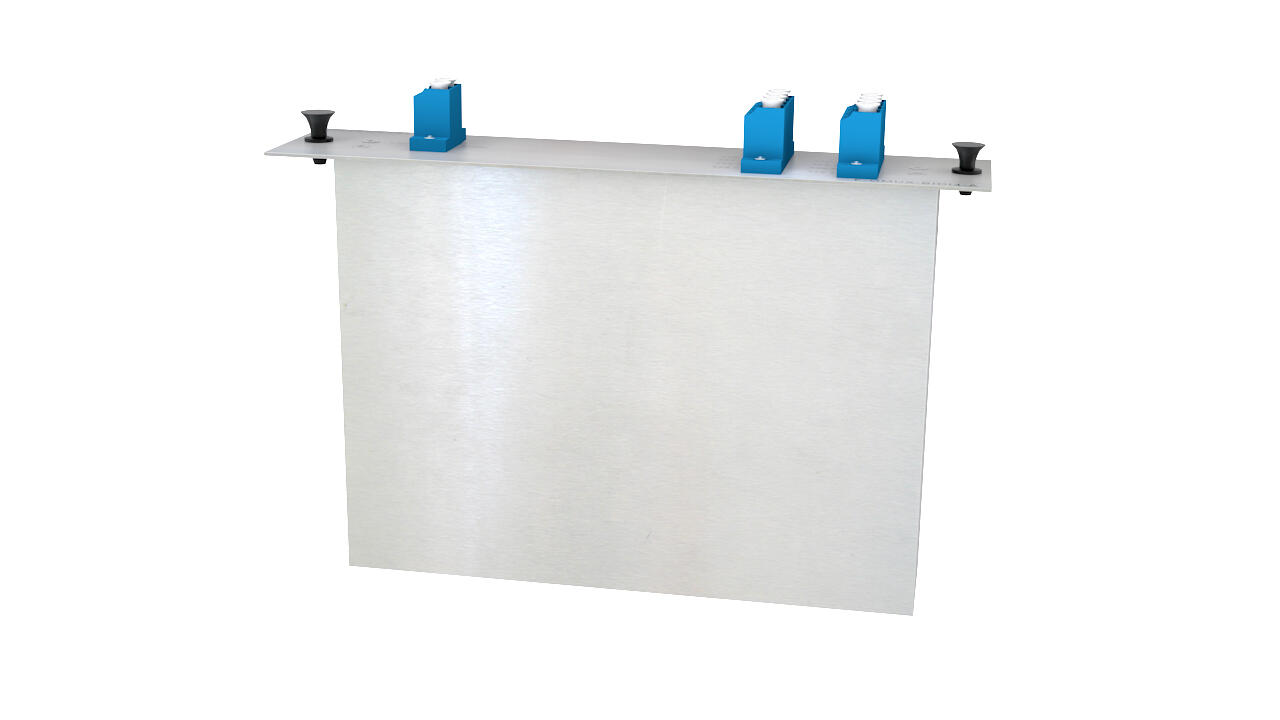

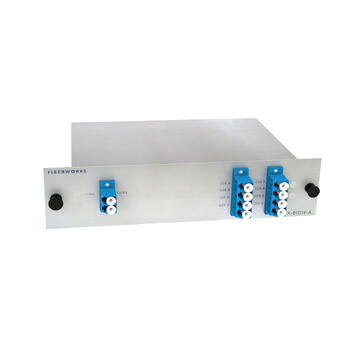

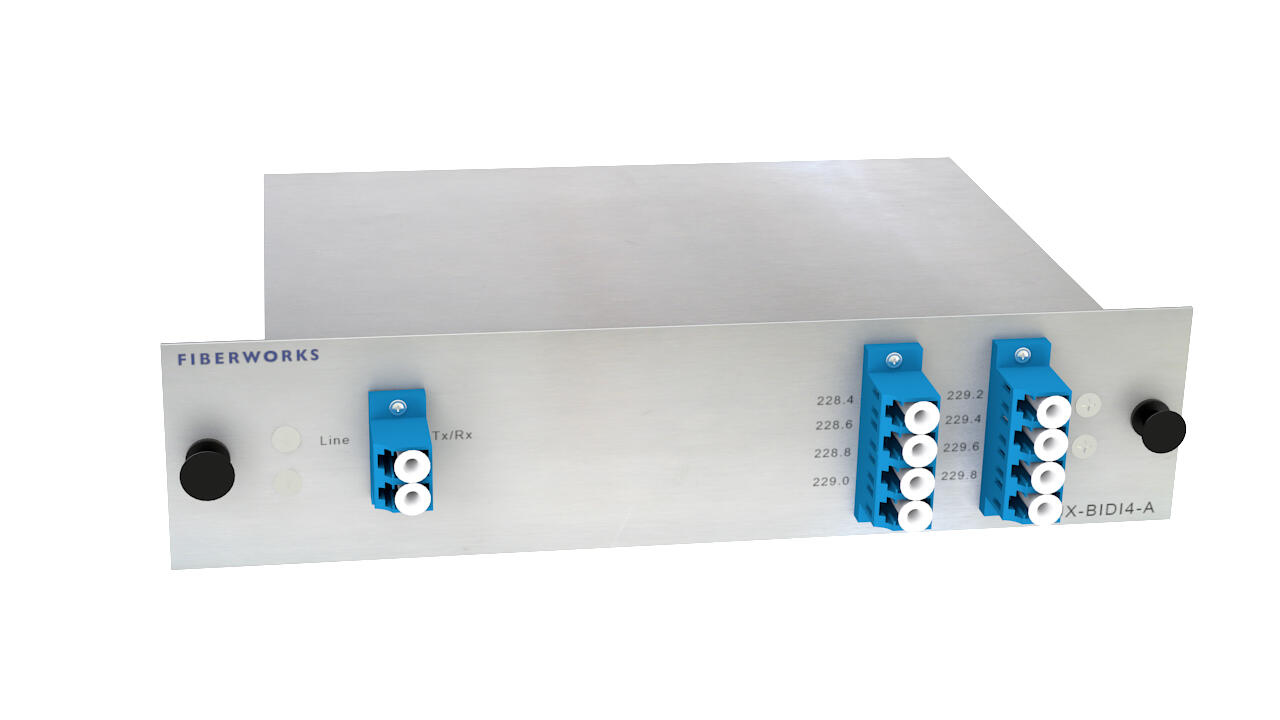

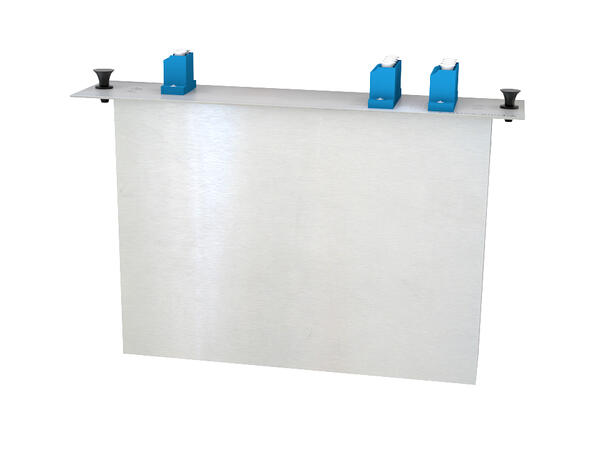

- Two modules fit in 1U in 19" rack
- LC/UPC connectors

Teknisk info

Produktinformasjon

Formfaktor	Fiberworks
Fibertype	SM
Linjefiber	Enkel (bidi, mux/demux)
Antall kanaler	4
Add/drop-muligheter	Nei, kun mux/demux
Konnektortype	Rett (UPC, PC)
Produktklassifisering/tollkoder	ECCN: EAR99 HS: 8517.62.0090
