FT-802S15 Fast Ethernet Media Converter

Name: FT-802S15 Fast Ethernet Media Converter
Brand: PLANET
SKU: MC-PLANET-FT-802S15
Price: 860 NOK
Availability: BackOrder

Duplex SC Singlemode Fiber, w/LFPT

Varenr: MC-PLANET-FT-802S15

Alt. varenr: FT-802S15

Beskrivelse

FEATURES

Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
Connectors: One RJ-45 (Auto-MDI/MDI-X) twisted pair, EIA568
One fiber-optic, 1310nm wavelength, SC singlemode duplex connector
Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
- Full or half-duplex mode by DIP-switch (FX)
LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
DIP-switch: 2 DIP-switches

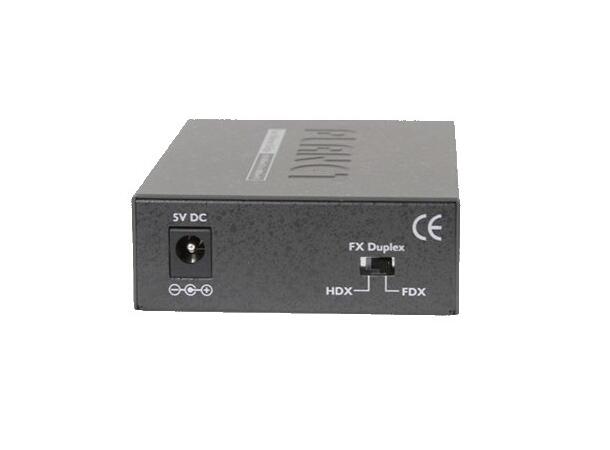

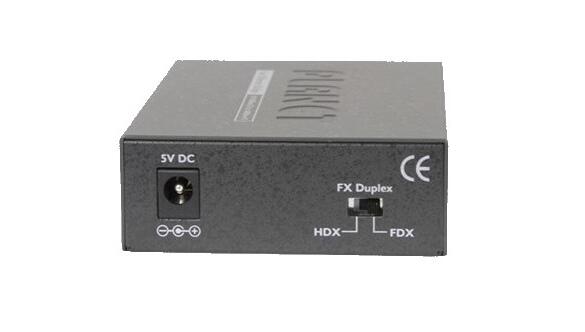

- Rear DIP-switch: FX duplex mode selection

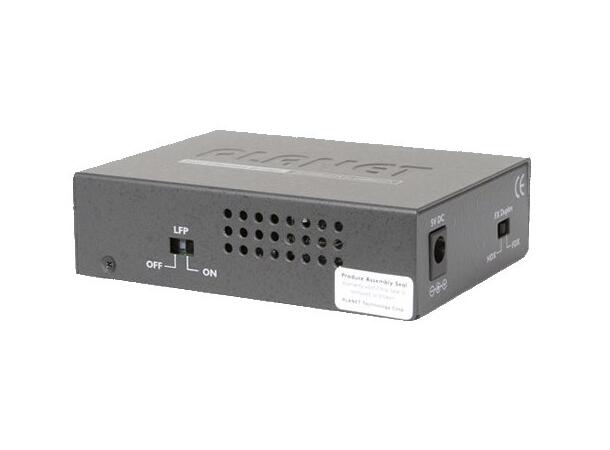

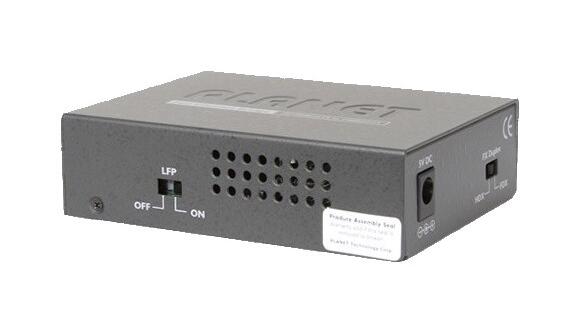

- Side DIP-switch: LFP (Link Fault Pass-through) mode selection

Teknisk info

Protokoll / bitrate	Fast Ethernet
Fiberport	15km SM (SC/UPC)
Kobberport	Ja, RJ45
Power over Ethernet (PoE)	Nei
Management	Nei
Strømforsyning	5V DC (via konverter / USB) 230V AC (ekstern konverter)
Andre egenskaper	For DIN-skinne
