Physical Port:

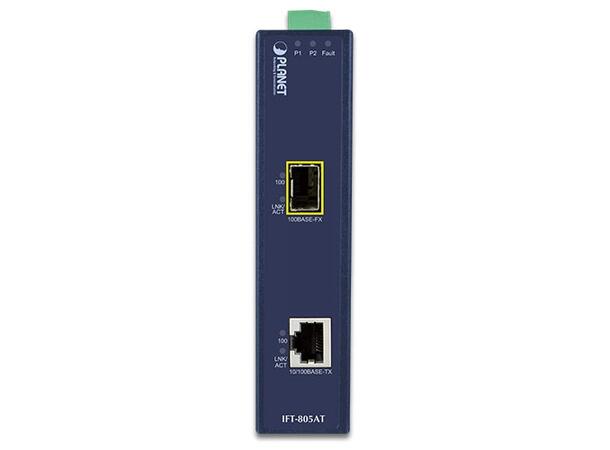

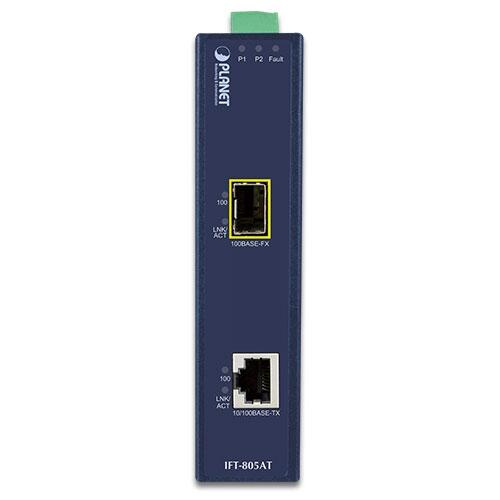

- 1-port 10/100BASE-T RJ45 with auto MDI / MDI-X function
- 1 SFP interface, 100BASE-X dual mode (auto detection)


Layer 2 Features:

 - IEEE 802.3 / 802.3u Ethernet standard compliant
 - Supports auto-negotiation and 10/100Mbps half / full duplex
 - Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
 - 9K jumbo frame size support
 - LFP function support

Industrial Case / Installation

 - Slim-type compact IP30 metal case (30 x 70 x 104 mm)
 - DIN rail and wall-mount design

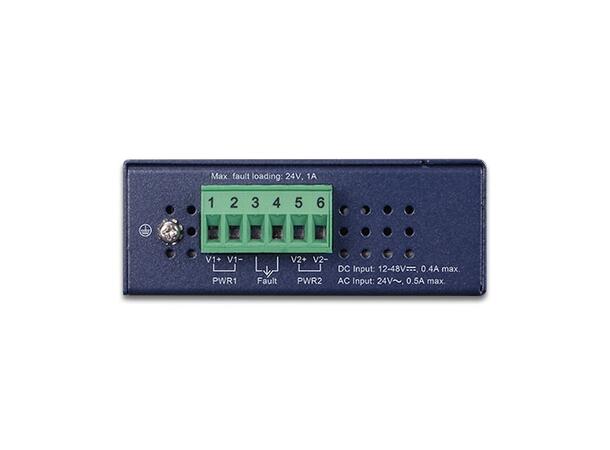

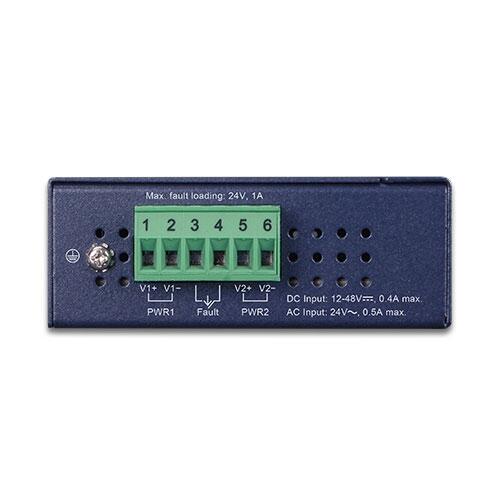

 - Redundant power design
    - 12 to 48V DC, redundant power with polarity reverse protect function
    - AC 24V power adapter acceptable
 - Supports EFT protection for 6000 VDC for power line
 - Supports 6000 VDC Ethernet ESD protection
 -  -40 to 75 degrees C operating temperature
