FEATURES
• Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
• Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
• Tx-1310nm, Rx-1550nm
• Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps
• Duplex mode support:
- Full or half-duplex mode by auto-negotiation (TP)
- Full or half-duplex mode by DIP switch (FX)

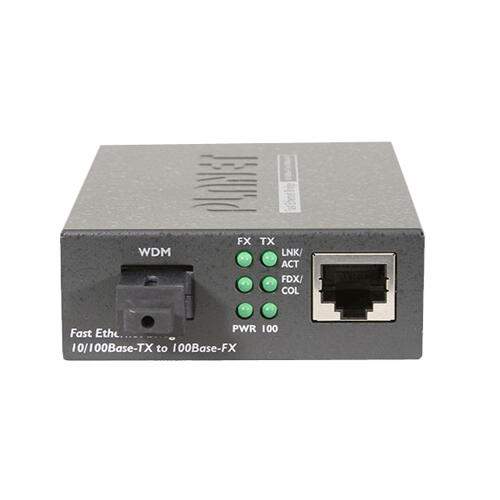

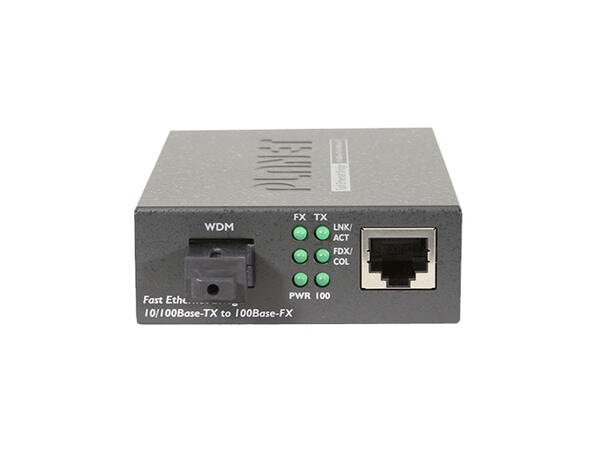

• LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
• DIP switch: 2 DIP switches
- Rear DIP switch: FX duplex mode selection
- Side DIP switch: LFP (Link Fault Pass-through) mode selection
• IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets
• Tx power: -14 to -8 dBm
• Rx power: -31 to 0 dBm
