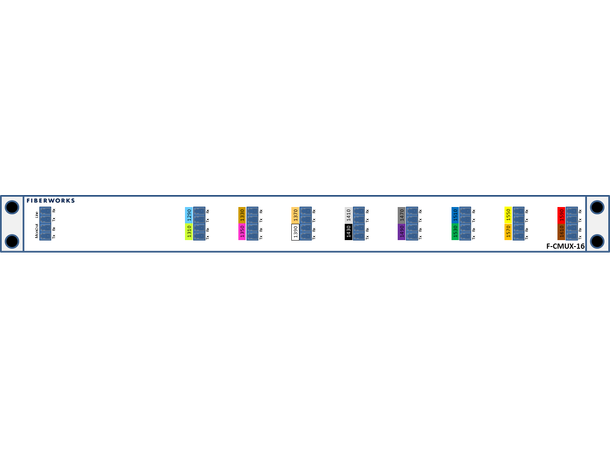

Fiberworks 16 ch. CWDM Mux+Demux

C29-C43 and C47-C61, Monitor ports

Varenr: F-CMUX-16-2961-MLU
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
FEATURES
- Coarse WDM in compliance with ITU-T G.694.2
- 16 CWDM channels 1290nm - 1430nm and 1470nm - 1610nm with 20nm spacing
- Two 2% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- 1U in 19" rack
- LC/UPC connectors

Teknisk info

Produktinformasjon

Formfaktor 19" 1U
Fibertype SM
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 16
Add/drop-muligheter Nei, kun mux/demux
Konnektortype Rett (UPC, PC)
Konnektor LC/UPC
Andre egenskaper Monitorport
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
