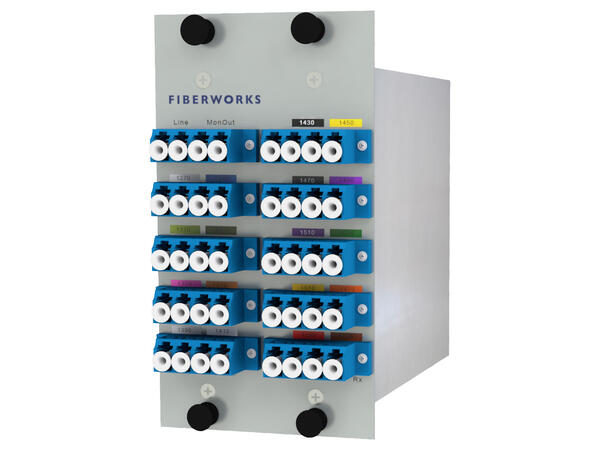

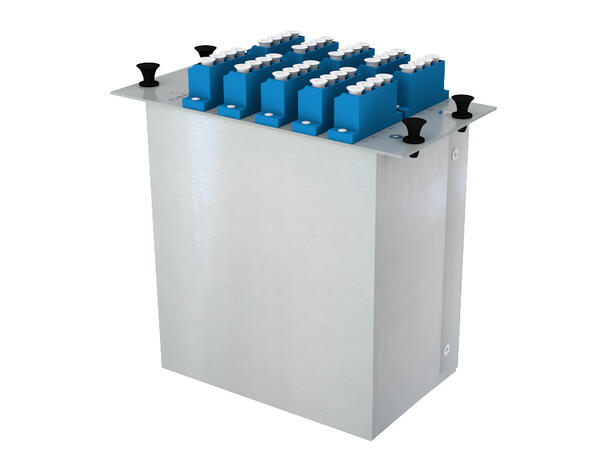

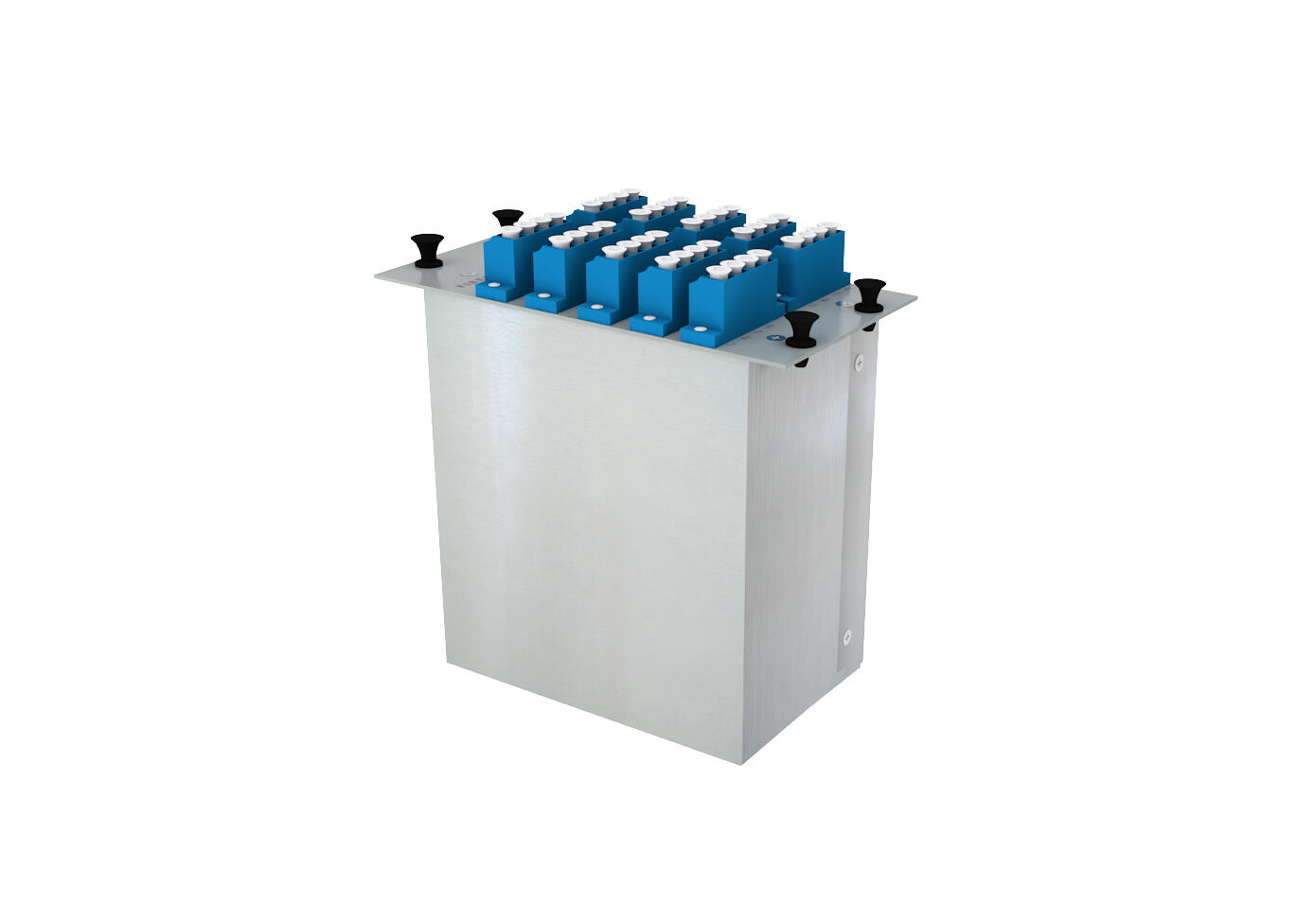

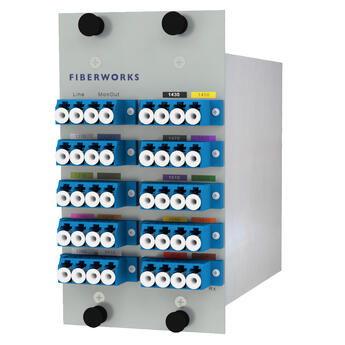

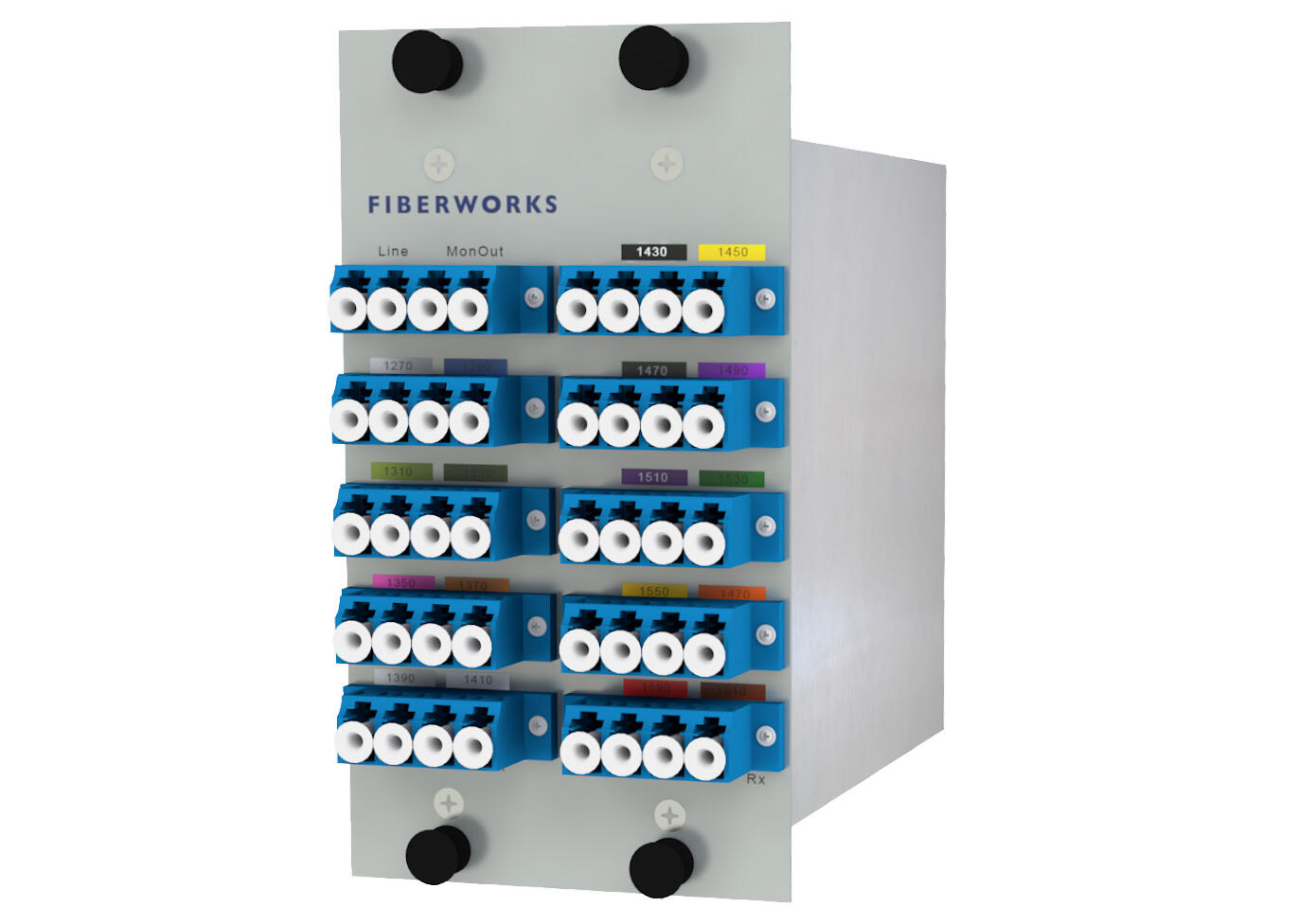

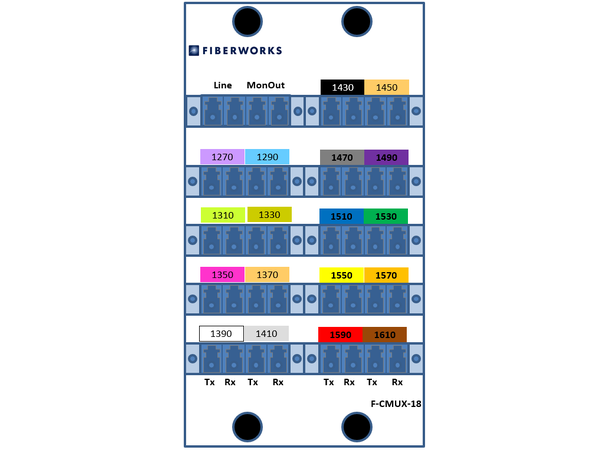

Fiberworks 18 ch. CWDM Mux+Demux, LGX2

C27-C61, Monitor ports

Varenr: F-CMUX-18-2761-LGX2
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse

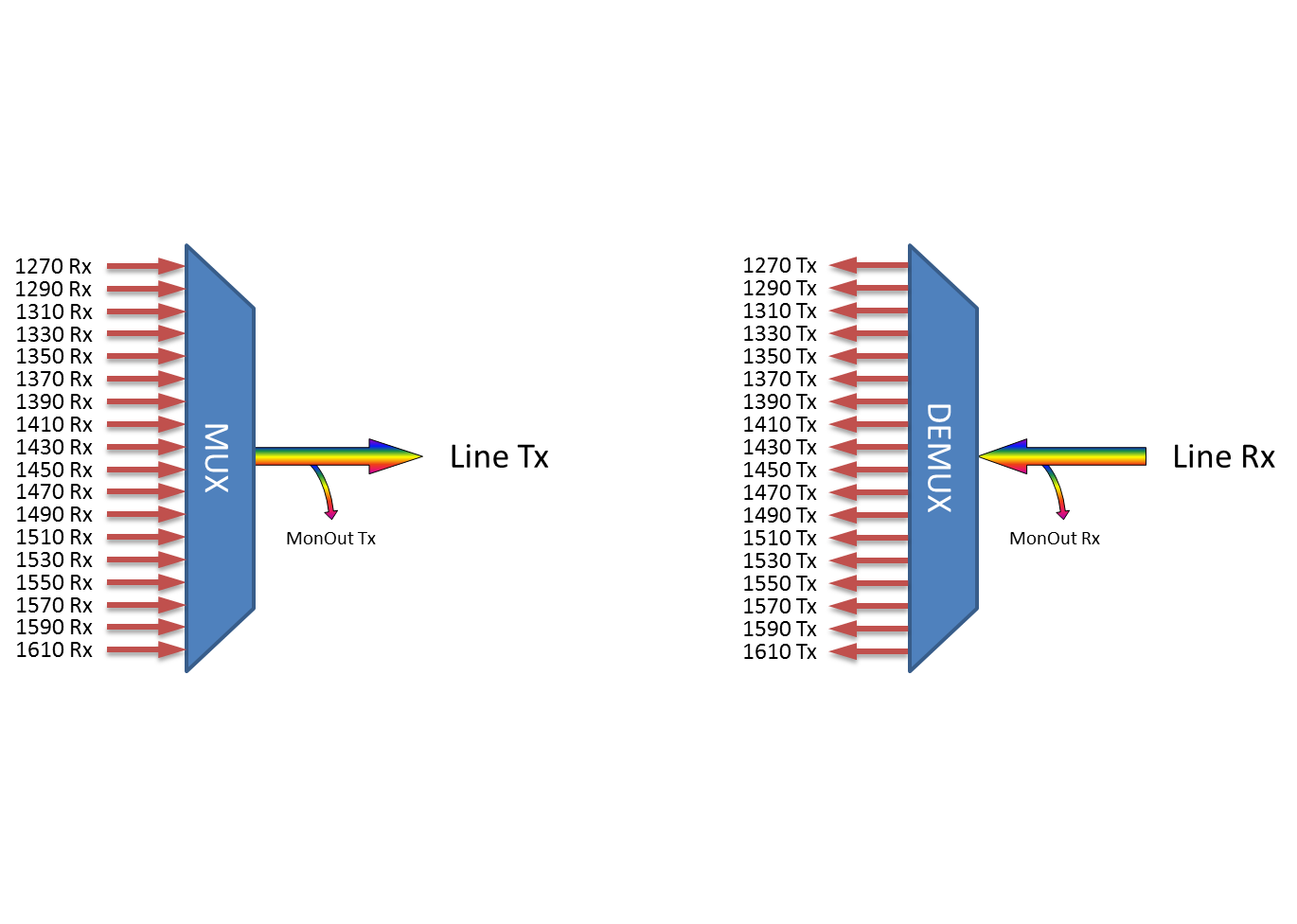

FEATURES
- Coarse WDM in compliance with ITU-T G.694.2

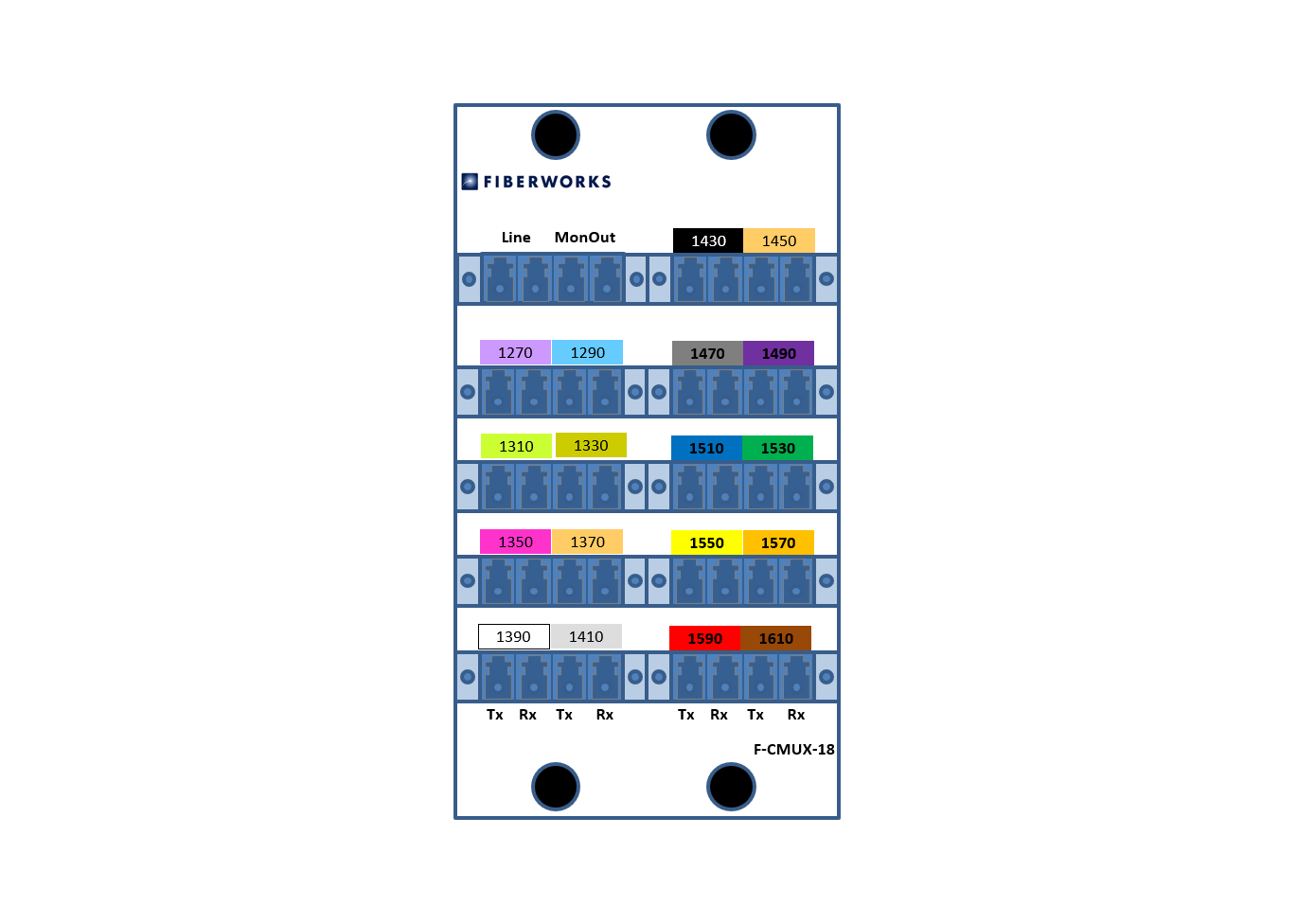

- All 18 CWDM channels 1270nm - 1610nm with 20nm spacing
- Two 2% monitor ports for easy troubleshooting
- Based on thin film optics with epoxy free optical path
- Protocol transparent (support 1G, 10G etc.)
- Double-width LGX2 module
- LC/UPC connectors

Teknisk info

Produktinformasjon

Formfaktor LGX2
Fibertype SM
Linjefiber Dobbel (fiberpar, mux+demux)
Antall kanaler 18
Add/drop-muligheter Nei, kun mux/demux
Konnektortype Rett (UPC, PC)
Konnektor LC/UPC
Andre egenskaper Monitorport
Produktklassifisering/tollkoder
  • ECCN: EAR99
  • HS: 8517.62.0090
