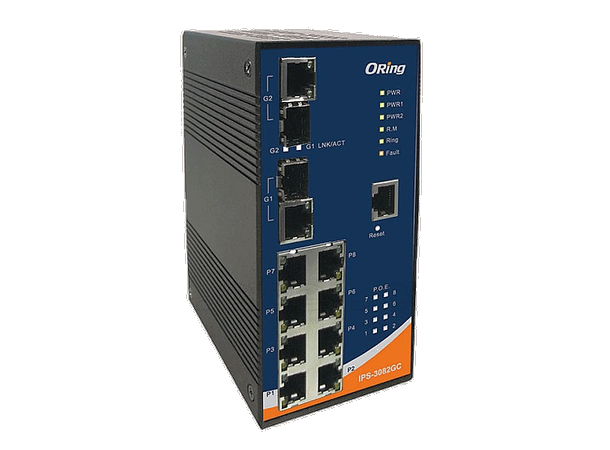

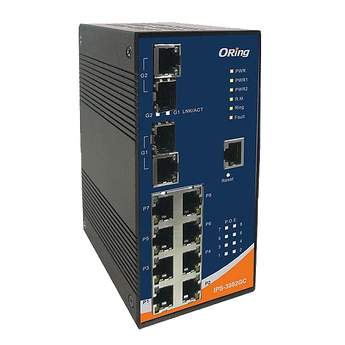

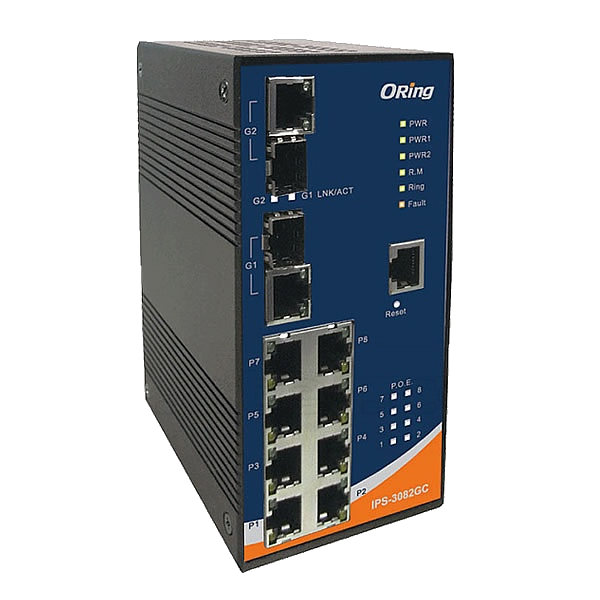

ORing FastE 8x 10/100TX + 2x SFP/RJ45 Managed Switch, Rugged

ORing FastE 8x 10/100TX + 2x SFP/RJ45

Managed Switch, Rugged

Varenr: ORING-IES-3082GC
Alt. varenr: IES-3082GC
Datablad / mer produktinformasjon
BeskrivelseTeknisk infoTilbehørAlternativer
Beskrivelse
OVERVIEW
IES-3082GC is managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) and 2x Combo 100/1000Base-X SFP / RJ45 ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring,  and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IES-3082GP can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for highly-managed and Fiber Ethernet application.


 FEATURES
• Fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
• Open-Ring supports the other vendor's ring technology in open architecture
• MSTP/RSTP/STP(IEEE 802.1s/w/D)
• Supports PTP Client (Precision Time Protocol) clock synchronization
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Port Trunking for easy bandwidth management
• SNMP v1/v2c/v3 support for secured network management
• RMON for traffic monitoring
• Event notification through Syslog, Email, SNMP trap, and Relay Output
• Windows utility (Open-Vision) supports centralized management and configuration by Web-based ,Telnet, and Console (CLI)
• Supports two SFP slots for 100/1000Base-X SFP Fiber
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled
• Supports LLDP Protocol
Teknisk info

Produktinformasjon

Protokoll / bitrate
  • Fast Ethernet
  • Gigabit Ethernet
Antall fiberporter 2
Antall kobberporter 8
Power over Ethernet (PoE) Nei
Management Ja, standalone
Produktklassifisering/tollkoder
  • ECCN: EA991.c
  • HS: 8517.62.0020
