OVERVIEW

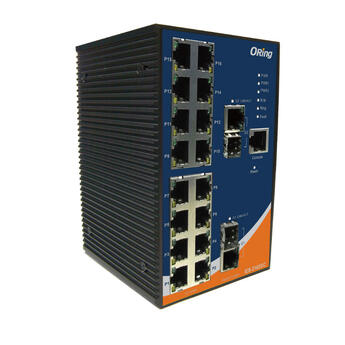

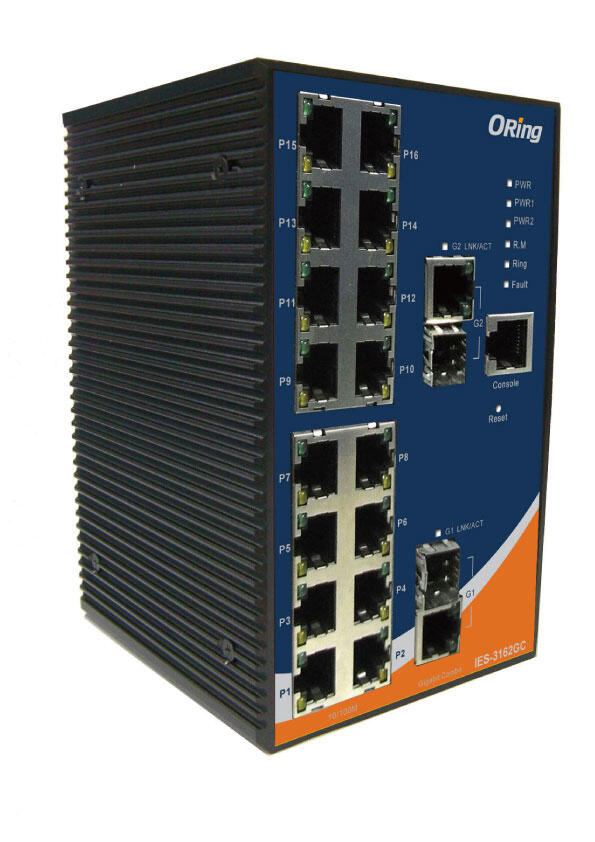

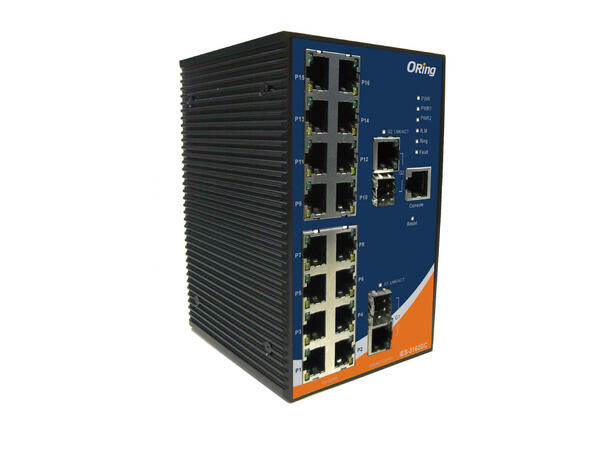

IES-3162GC is the managed Redundant Ring Ethernet switch with 16x10/100Base-T(X) ports and 2xgigabit combo ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
All function of IES-3162GC can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40 to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
FEATURES
• Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)
• Open-Ring supports other vendors' ring technology in open architecture
• STP/RSTP/MSTP supported
• Supports PTP Client (Precision Time Protocol) clock synchronization
• IGMP v2/v3 (IGMP snooping for support) filtering multicast traffic
• Port Trunking for easy of bandwidth management
• SNMP V1/V2c/V3 support for secured network management
• RMON for traffic monitoring
• Supports LLDP protocol
• Event notification through Syslog, Email, SNMP trap, and Relay Output
• Port lock to prevent access from unauthorized MAC address
• Windows utility (Open-Vision) supporting centralized management and configurable by Web-based, Telnet, and Console (CLI)
• Supports two Gigabit combo ports
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled
